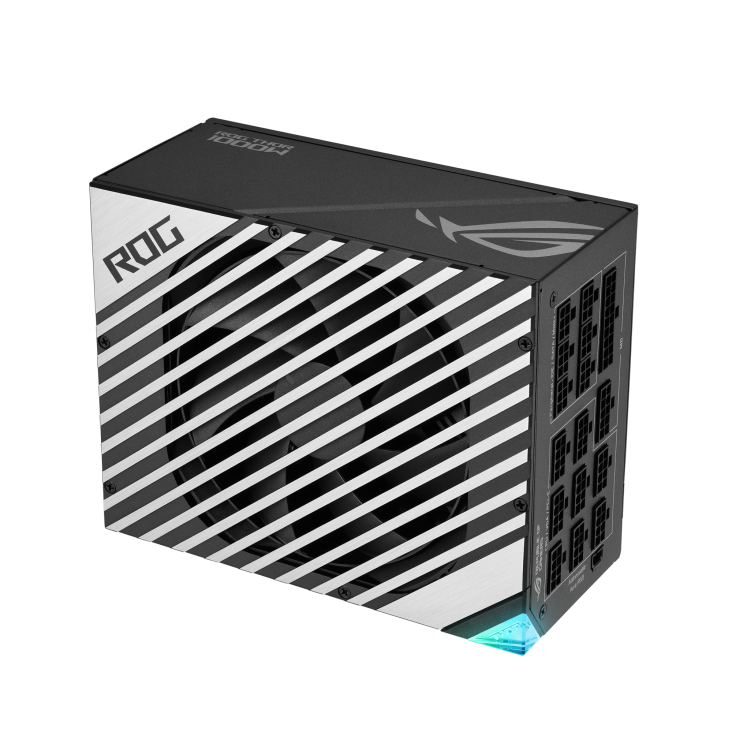

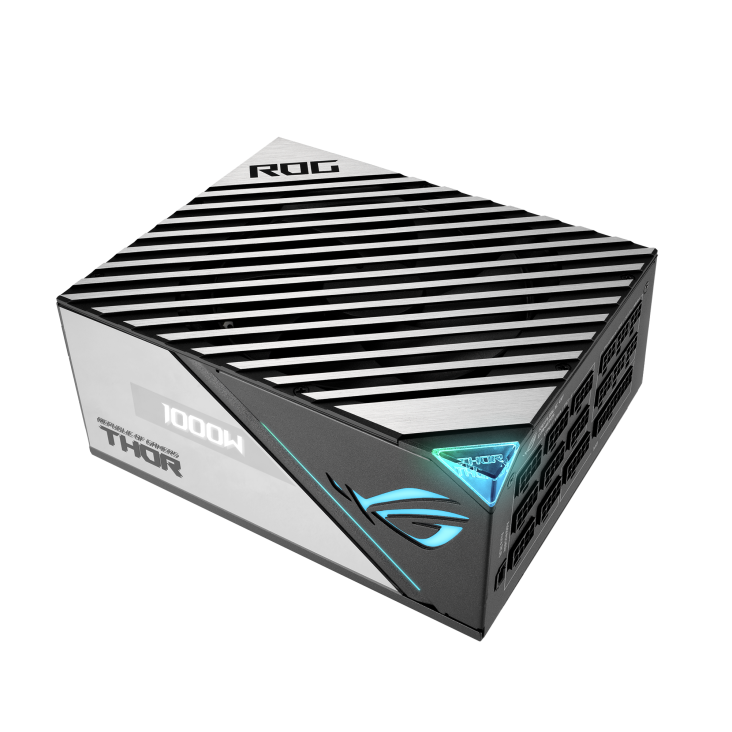

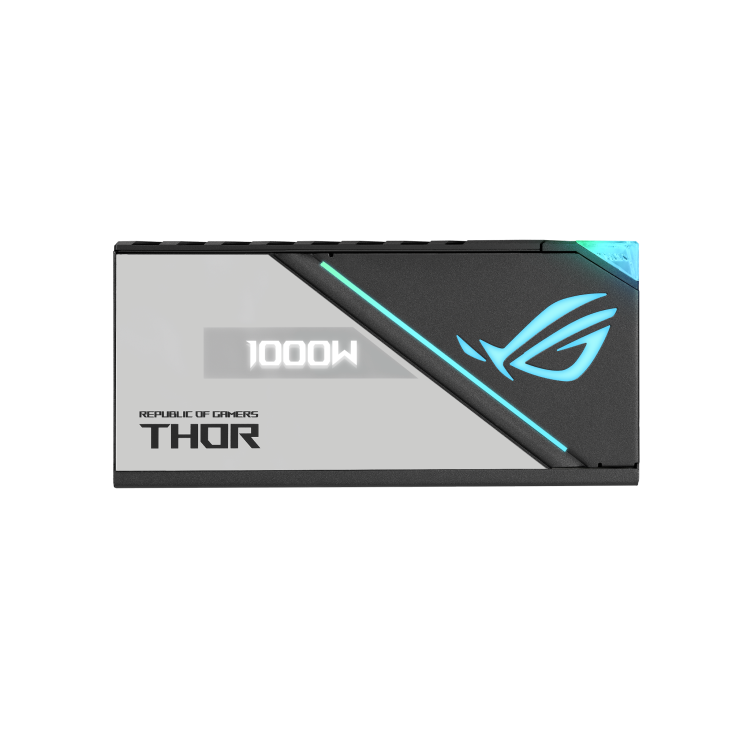

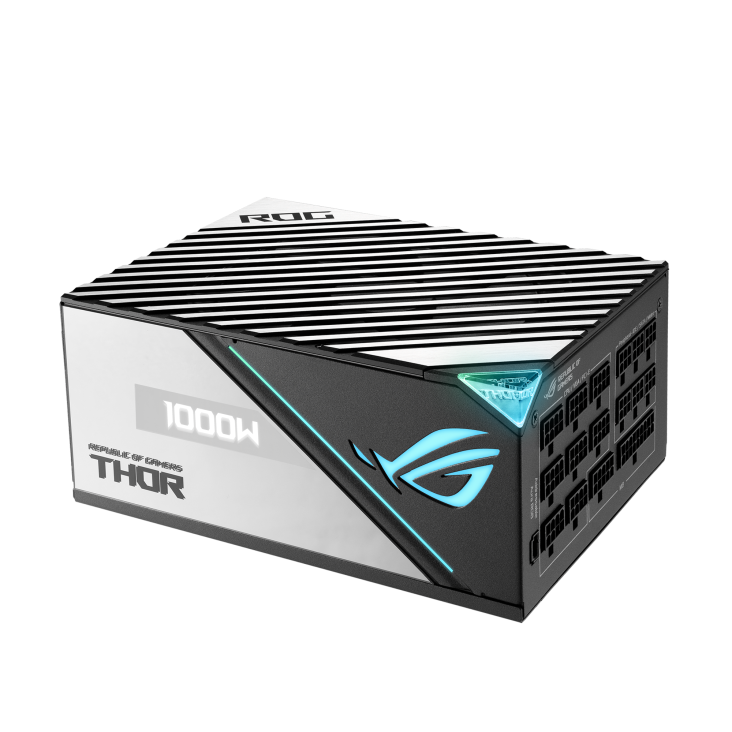

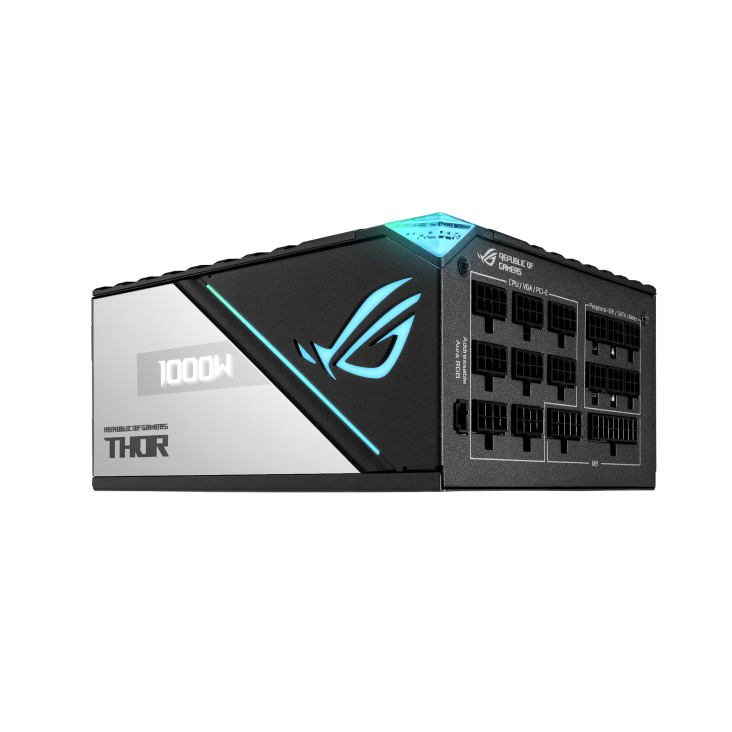

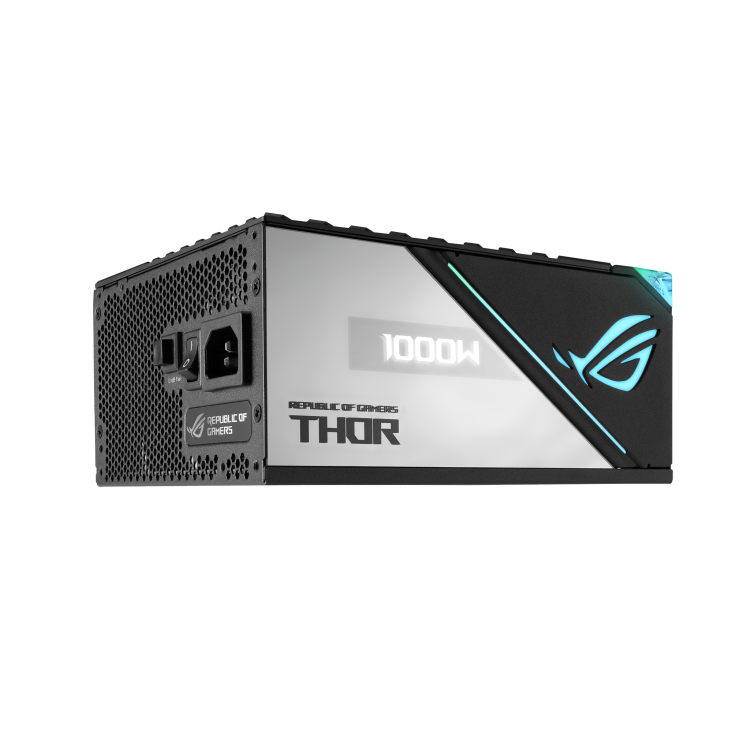

Asus ROG Thor Platinum II 1000W 80 Plus Fully Modular Power Supply

SPECIFICATIONS:

• PFC Type: Active PFC
• Efficiency: 80Plus Platinum
• MTBF: >120,000hrs @ 25°C
• Protection Features: OPP/OVP/UVP/SCP/OCP/OTP
• Hazardous Materials: ROHS
• AC Input Range: 100-240Vac
• DC Output Voltage: +3.3V +5V +12V -12V +5Vsb
• Maximum Load: 25A 25A 83A 0.3A 3A
• Combined Load: 125W 125W 996W 3.6W 15W
• Total Output: 1000W

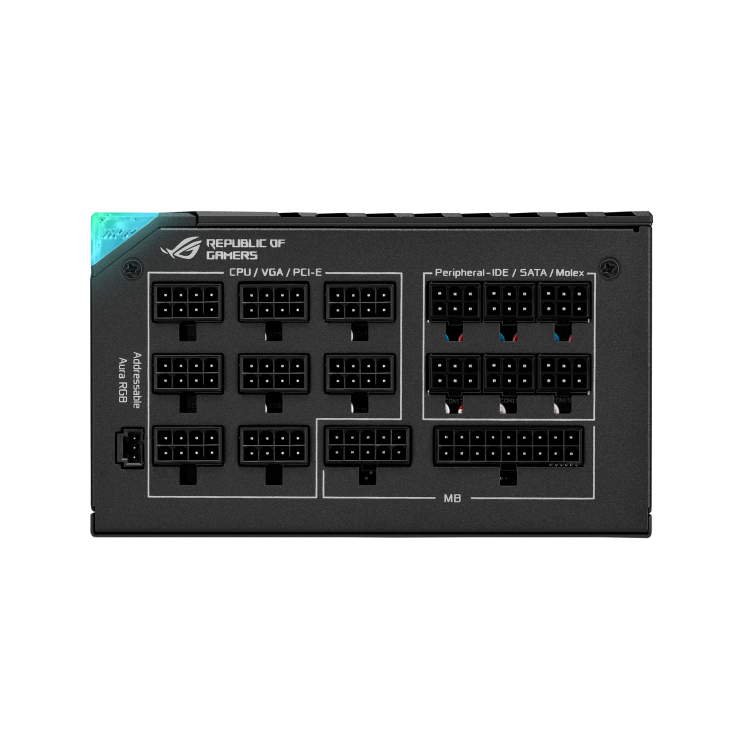

• Cable Connectors:
  • MB 24/20-pin x 1
  • CPU 4+4-pin x 2
  • PCI-E 16-pin x 1 (component side)
  • PCI-E 6+2-pin x 8
  • SATA x 12
  • PERIPHERAL x 6
• Aura Sync: ARGB
• Cybernetics Noise Level Certification: A++
• 0dB Technology: Supported. The fan shuts off entirely when the PSU is under certain load
• 0dB Fan Button: Yes. When the Button is ON, the fan will only spin up when the system reaches a certain load. When the Button is OFF, the fan will continuously spin at all load levels
• Dimensions: 19 x 15 x 8.6 cm
• Weight: 2370 g

WHAT’S IN THE BOX:

• Asus ROG Thor Platinum II 1000W 80 Plus Fully Modular Power Supply x1
• Power Cord x 1
• Motherboard Power Cable (610mm) x1
• CPU Cable (650mm) x2
• PCIE Cable 16-pin (675mm) x1
• PCIE 1-to-1 Cable (675mm) x4
• PCIE 1-to-2 Cable (675+75mm) x2
• SATA 1-to-4 Cable (400+120+120+120mm) x3
• Peripheral 1-to-3 Cable (450+120+120mm) x2
• Addressable RGB Cable (800mm) x1
• ROG sticker x 1
• ROG cable tie x 6
• Sleeved Cable Combs (6-pin) x 4
• Sleeved Cable Combs (8-pin) x 10
• Sleeved Cable Combs (24-pin) x 2
• Chassis Screws Package x 1
• Cable Tie x 12
• User Manual x 1
